Retaining Wall Drainage: Weep Holes, Backfill and Why Walls Fail

The Physics, in Plain English

A retaining wall's job looks simple: hold back a slope. What it actually holds back is more specific than "earth". Saturated soil is remarkably heavy, and when water sits inside it rather than passing through, it creates hydrostatic pressure: a sideways force pushing against the back of the wall that has nothing to do with the weight of the soil alone. It's the same principle as water pressing against a dam.

A wall designed to carry the weight of damp soil was never designed to carry the weight of soil behaving like a body of trapped water. Give that water a way out and the pressure it exerts drops to a fraction of what it would be otherwise. Drained wall against undrained wall, carrying a fraction of the load, is the whole subject of this article.

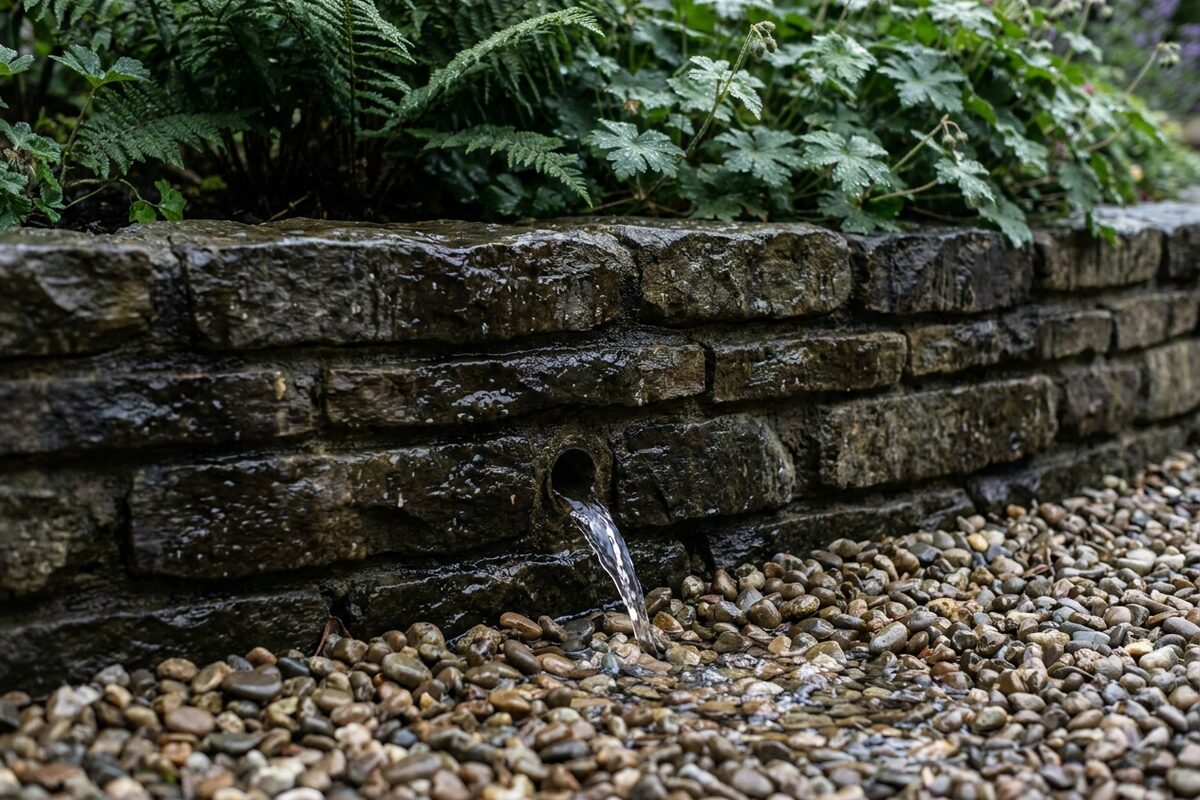

Weep Holes: The Wall Working, Not Failing

Weep holes are the small openings left through the face of a wall near its base, and they're usually the first thing a client asks me about, because they look wrong. A neat wall with regular little gaps through it looks, to most people, like something forgotten or something that needs pointing up.

It's the opposite. A weep hole is doing precisely the job it was built for: letting water that's built up behind the wall escape before it turns into pressure. When I find weep holes rendered over or filled in for a tidier finish, that's a genuine mistake, not an improvement. It closes the escape route and sends the pressure straight back where it started.

The Layer Nobody Sees

Weep holes only work if water can reach them, and that route is built behind the finished wall face, hidden from view. It does more to decide whether a wall lasts than the material it's faced in.

Free-draining backfill, clean stone rather than the clay or topsoil that came out of the hole, sits directly behind the wall. Water moves through clean stone easily; it barely moves through clay at all. Get this wrong and the wall is holding back a wet sponge, whatever it's built from.

At the base of that stone, a perforated land drain collects the water and carries it away, laid to fall so gravity does the work, and taken somewhere it can actually discharge rather than left to sit.

Between the clean stone and the undisturbed soil behind it sits a geotextile membrane, and this is the component I see left out more often than any other. Its job looks unglamorous: keep fine soil particles out of the stone. Leave it out, and fine soil washes into the stone over time, clogging the gaps that let water pass. A backfill that drained perfectly on day one can stop working within a few years, buried and invisible until the wall starts to move.

Where the retained material needs protecting, a waterproof membrane on the wall's back face adds a further line of defence, keeping the structure itself drier still.

Where the Water Actually Goes

A land drain is a route, not a destination. Water collected behind a retaining wall has to be taken somewhere real: an existing drainage run, a ditch, a watercourse, or a soakaway designed to take it. I've written separately about drainage against a house wall, and soakaways deserve a piece of their own; the principle running through all of it is the same. A drain that simply ends in more clay achieves nothing. Where the water is going has to be worked out before the wall goes up, not discovered afterwards.

Kent Clay Makes Both Sides Harder

Most of the gardens I work in across Kent and East Sussex sit on clay, and clay complicates a retaining wall from both directions. It holds water rather than letting it pass, exactly the behaviour drainage exists to counter, so the load behind a wall in clay tends to be wetter and heavier than the same wall elsewhere. Clay also swells and shrinks with moisture, which moves the ground around a wall's foundations over time.

None of that means a wall in clay can't be built well. It means the drainage has to be done properly rather than adequately, because clay gives a badly drained wall no room for error.

Retrofitting Drainage to an Existing Wall

I'd rather tell you this honestly than pretend it's simple. If an existing wall's drainage was never installed properly, or has failed, retrofitting it is difficult. In most cases it means excavating behind the wall to reach the backfill and expose its back face, which is disruptive and often costs close to what a new wall would. There's no shortcut that avoids getting behind the wall; the drainage has to sit there, not bolted on at the front.

That's not a reason to ignore a failing wall's drainage. It's a reason to get it right the first time a wall goes up, and to treat a failure as a proper piece of work rather than something to patch from the outside.

When a Wall Is Already in Trouble

A retaining wall that's leaning, bulging, cracking, or weeping water through its face in places it shouldn't is not a wait-and-see situation. Neither is soil visibly slumping or moving above it. These are signs the wall is under more pressure than it was built to carry, and a leaning or bulging retaining wall is a safety matter, not a design one. That's a call for a structural engineer, not a garden designer, and not something to leave until it gets worse. I'd always rather a client called an engineer about a wall that turned out fine than the other way round.

Conclusion

Drainage is the part of a retaining wall nobody photographs and almost everybody underestimates. Get it right before the render goes on and the planting goes in, and it becomes something you never have to think about again. If you're planning a wall from scratch, it's worth having that conversation with your designer before the first stone goes down.
